XDC-2003

Brand: Eureka
Manufacturer: Taiwan Dry Tech Corp.
Model: XDC-2003
Capacity: 1329 Liters
Humidity Range: ≤ 5% RH
Recovery Time: Down to ≦ 5%RH within 30 min. after opening a door in 30 sec and closing it.
External Dimensions: 120*195*71.4 cm (W*H*D)
Internal Dimensions: 110*170*61 cm (W*H*D)
Shelf Type: 5 Steel Drilled Shelves, 1 Set of Anti-Tip Locking Brackets (2 pcs per set)
Door Type: Three Tier Side by Side Anti-Static Glass Doors
Power Consumption: 150 Watts
Cabinet Color: Silver Grey
Lock Type: Style 2 Lock- 2 keys included

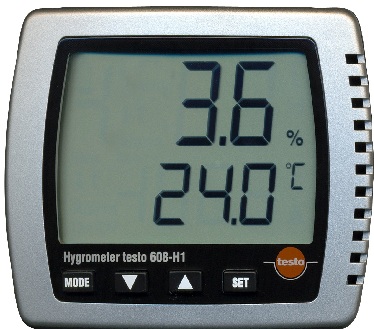

Hygrometer Type: German Digital TESTO Thermal Hygrometer

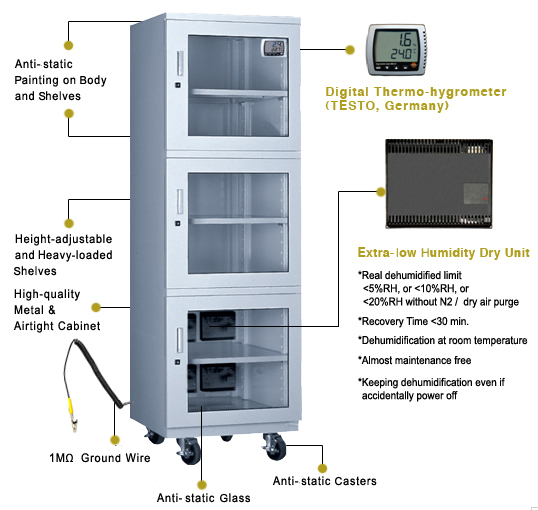

Ultra Low Humidity Dry Cabinet
Anti-static Glass,
Anti-static Paint on Body and Shelves,
​Anti-static Caster / Stands,
1 M Ω Ground Wire

Share:

Ultra-Low Humidity Dry Cabinet with Fast Recovery Time

Eureka Dry Tech Fast Super Dryer | Under 5% RH Dry Cabinet | JEDEC Dry Storage Solutions for Moisture-Sensitive Devices

Professional Ultra-Low Humidity Storage Solutions

Eureka Dry Tech's Fast Super Dryer Dry Cabinets provide automatic and reliable relative humidity control, offering storage environments of below 5% RH, below 10% RH, below 20% RH, and adjustable humidity levels from 10% to 50% RH, depending on the product series.

Designed for fast humidity recovery under normal ambient conditions, these electronic dry cabinets maintain controlled storage environments without requiring nitrogen (N₂) or clean dry air purging.

By reducing moisture exposure, Eureka Dry Tech's Fast Super Dryers help improve product quality, manufacturing reliability, and production yield while minimizing moisture-related damage to sensitive electronic components and materials.

Our Fast Super Dryer cabinets are widely used in:

  • Surface Mount Technology (SMT) and PCB manufacturing.

  • Semiconductor and electronic component production.

  • Research and development (R&D) facilities.

  • High-tech manufacturing industries.

  • Cleanrooms and laboratories.

  • Precision equipment and instrument storage.

  • Industrial warehouses and moisture-sensitive material storage.

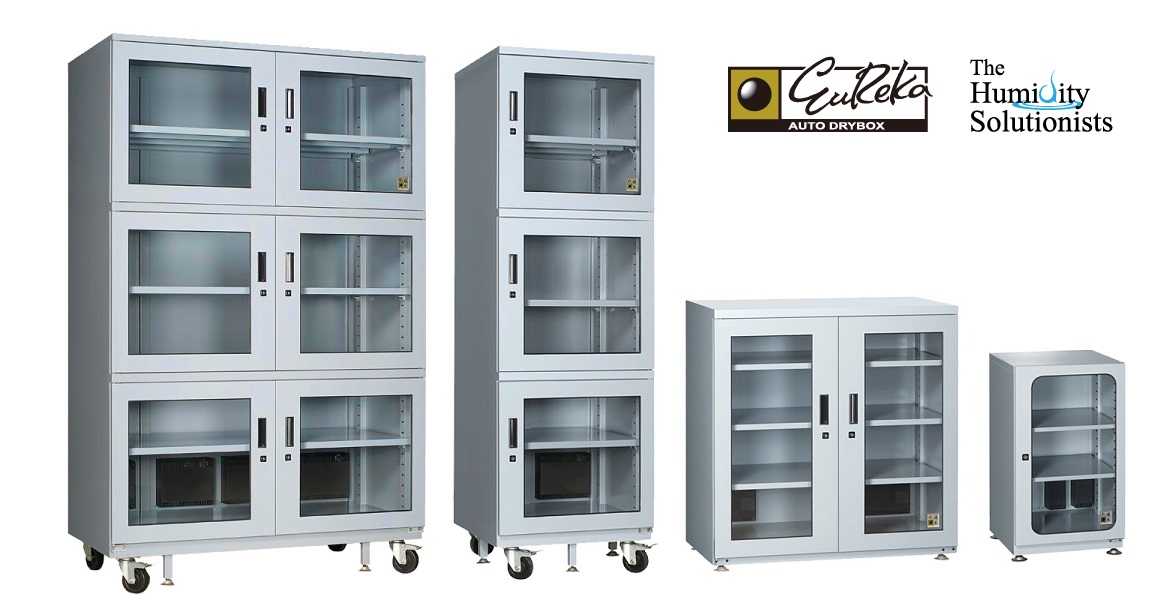

Fast Super Dryer Series Comparison

Eureka Dry Tech offers four humidity-control series to accommodate different storage requirements.

Features

XDC Series

SDC Series

TD Series

TUS Series

Humidity Range

<5% RH

<10% RH

<20% RH

10–50% RH

Control Mode

Automatic

Automatic

Automatic

Manual

Recovery Time

<5% RH within 30 minutes

<10% RH within 30 minutes

<20% RH within 30 minutes

<20% RH within 2 hours

Applications

Ultra-low humidity storage for moisture-sensitive devices (MSDs)

Low-humidity storage for MSDs during SMT assembly, PCB manufacturing, packaging and processing

Stable low-humidity storage for hygroscopic components and precision equipment

Adjustable humidity storage for materials and equipment requiring different RH levels

Note: Recovery times are based on specified testing conditions and may vary depending on cabinet configuration, ambient conditions, loading, and door-opening frequency.

Why Is Moisture Control Important in SMT and Electronics Manufacturing?

Moisture sensitivity is a major concern in Surface Mount Technology (SMT), particularly during high-temperature reflow soldering processes.

Moisture-sensitive devices (MSDs), electronic components, and printed circuit boards (PCBs) may absorb moisture from the surrounding environment during storage, transportation, and handling.

When exposed to the high temperatures of reflow soldering, trapped moisture can rapidly expand, creating internal pressure and potentially damaging electronic packages or PCB structures.

Some defects may not be immediately visible during manufacturing and may only appear after products have been deployed in the field.

These risks are especially critical in industries where product reliability and long-term performance are essential, including:

  • Automotive electronics.

  • Aerospace and aviation.

  • Defense electronics.

  • Medical devices.

  • Semiconductor manufacturing.

  • High-reliability industrial electronics.

Proper humidity-controlled storage is therefore an important part of preventing moisture-related defects and maintaining consistent manufacturing quality.

How Does Trace Moisture Affect SMT Production?

During high-temperature reflow soldering, absorbed moisture can cause internal component damage as it expands rapidly within electronic packages and materials.

Common moisture-related defects include:

  • Popcorning: Internal vapor pressure may cause cracking or separation within component packages.

  • Micro-Cracking: Moisture expansion can create microscopic cracks in semiconductor packages.

  • Blistering: Trapped moisture may result in surface deformation or internal separation.

  • PCB Delamination: Absorbed moisture within multilayer printed circuit boards may expand during reflow, causing separation between PCB layers.

  • Reduced Solderability: Improper storage conditions may contribute to oxidation and soldering difficulties.

  • Reliability Problems: Moisture-related damage may result in electrical or mechanical failures during subsequent product operation.

Because many electronic materials are hygroscopic, controlling humidity during storage and handling helps reduce the risks associated with moisture absorption.

Moisture Protection with Eureka Dry Tech Fast Super Dryer

Eureka Dry Tech's Ultra-Low Humidity Dry Cabinets provide controlled storage environments designed to support the proper handling and storage of moisture-sensitive devices and printed circuit boards.

The XDC and SDC series offer ultra-low humidity conditions suitable for applications requiring stringent moisture protection.

These storage solutions can support moisture-sensitive material handling procedures associated with industry standards such as:

  • IPC/JEDEC J-STD-033: Handling, packing, shipping, and use of moisture/reflow-sensitive surface-mount devices.

  • IPC-1601: Printed board handling and storage guidelines.

  • IEC 61340-5-1: Electrostatic discharge (ESD) protection requirements.

By maintaining appropriate low-humidity storage conditions, users can reduce further moisture absorption and support controlled handling of sensitive electronic materials.

Actual floor-life management and compliance requirements should be determined according to the applicable standard, component classification, storage conditions, and operating procedures.

Fast Humidity Recovery Performance

One of the key advantages of Eureka Dry Tech's XDC Series is its rapid humidity recovery capability.

When cabinet doors are opened, ambient air enters the storage area and temporarily increases the internal relative humidity.

After the doors are closed, the electronic dehumidification system automatically reduces the internal humidity to the specified low-humidity level.

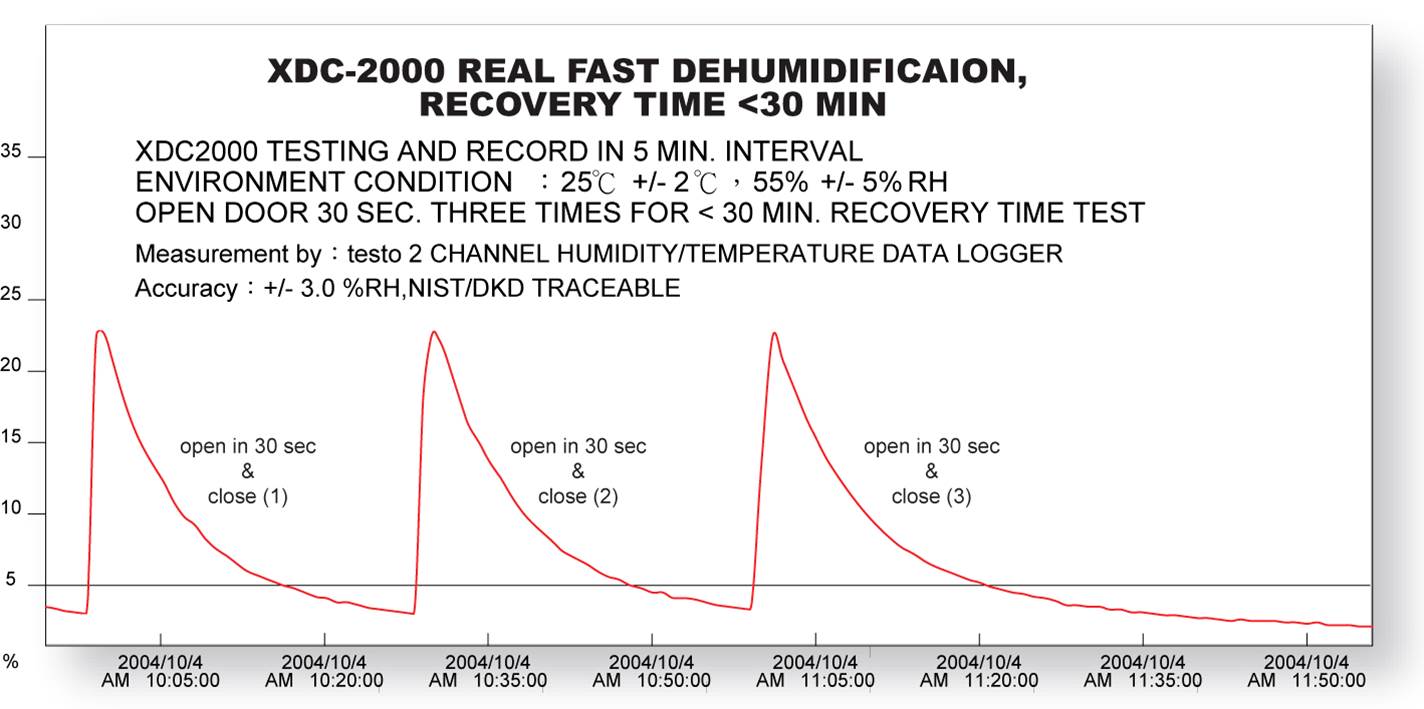

The XDC-2000 test data demonstrates humidity recovery to below 5% RH within approximately 30 minutes under the specified test conditions.

XDC-2000 Fast Recovery Test Conditions

  • Ambient Temperature: 25°C ±2°C.

  • Ambient Humidity: 55% RH ±5% RH.

  • Door Opening Duration: 30 seconds per test.

  • Number of Door Openings: Three.

  • Measurement Equipment: Testo 2-channel humidity/temperature data logger.

  • Measurement Accuracy: ±3.0% RH.

  • Test Date: October 4, 2004.

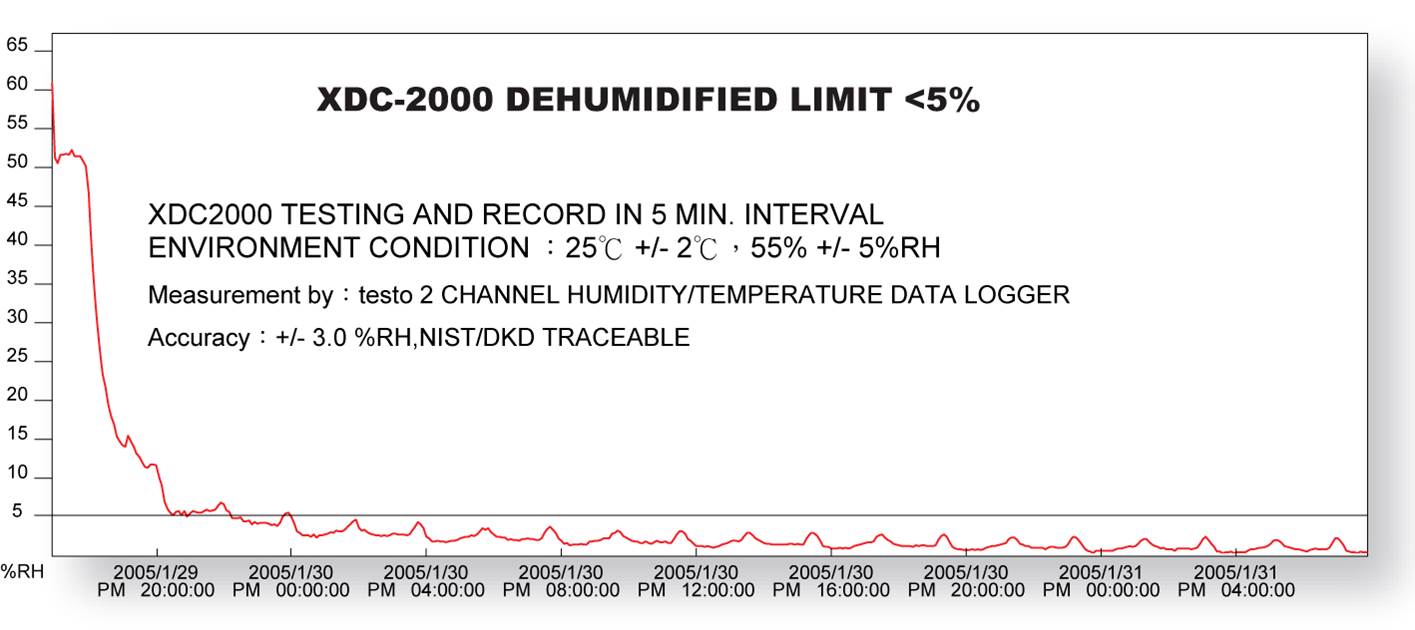

XDC-2000 Ultra-Low Humidity Performance

In addition to fast recovery, the XDC-2000 is designed to maintain an ultra-low humidity environment below 5% RH.

The dehumidification performance test illustrates the cabinet's ability to reduce internal humidity from ambient conditions to below 5% RH and maintain low-humidity storage conditions over an extended period.

XDC-2000 Dehumidification Test Conditions

  • Ambient Temperature: 25°C ±2°C.

  • Ambient Humidity: 55% RH ±5% RH.

  • Measurement Equipment: Testo 2-channel humidity/temperature data logger.

  • Measurement Accuracy: ±3.0% RH.

  • Test Period: January 29–31, 2005.

These test results demonstrate the XDC Series' fast recovery capability and stable ultra-low humidity performance under the specified testing conditions.

Alternative Moisture-Control Solutions to Traditional Baking and Nitrogen Purging

Conventional moisture-control methods in electronics manufacturing include high-temperature baking, nitrogen purging, and clean dry air systems.

However, different methods serve different purposes and have specific operational considerations.

Room-Temperature Dehumidification vs. Baking

High-temperature baking is commonly used to remove absorbed moisture from certain electronic components and printed circuit boards.

However, inappropriate baking temperatures or extended exposure may affect sensitive materials, surface finishes, coatings, and solderability.

Eureka Dry Tech's Fast Super Dryer cabinets provide a room-temperature, low-humidity storage environment that reduces further moisture absorption without exposing stored materials to high baking temperatures.

This helps maintain material condition during storage and handling.

For components that have already absorbed excessive moisture, a separate baking or drying process may still be required according to applicable handling standards and manufacturer recommendations.

Electronic Dehumidification vs. Nitrogen Purging

Nitrogen (N₂) and clean dry air systems can provide low-humidity storage environments but require an external gas supply, associated equipment, and ongoing operating costs.

Eureka Dry Tech's Fast Super Dryer uses an automatically regenerating desiccant-based dehumidification system, eliminating the need for continuous nitrogen or clean dry air purging under standard operating conditions.

This offers several advantages:

  • No continuous nitrogen consumption.

  • Reduced dependency on external gas supply systems.

  • Automatic electronic dehumidification.

  • Convenient continuous humidity-controlled storage.

  • Lower routine maintenance requirements.

  • Reliable room-temperature moisture protection.

Applications of Fast Super Dryer Ultra-Low Humidity Dry Cabinets

Eureka Dry Tech's Fast Super Dryer series is designed for various moisture-sensitive electronic components, materials, and manufacturing processes.

1. Moisture-Sensitive Device (MSD) Storage

Suitable for storing a wide range of electronic packages, including:

Dual-in-Line and Small Outline Packages

DIP, Flatpack, SOIC, SOJ, TSOP, SSOP, TSSOP, QSOP, VSOP, DFN.

Quad and Leadless Packages

PLCC, QFP, LQFP, PQFP, CQFP, MQFP, TQFP, QFN, LCC, MLP, PQFN.

Grid Array Packages

PGA, BGA, LGA, FBGA, LFBGA, TFBGA, CGA, CCGA, μBGA, LLP.

2. PCB and PWB Storage

Controlled low-humidity storage for:

  • Multilayer printed circuit boards (PCBs).

  • Printed wiring boards (PWBs).

  • Boards awaiting SMT assembly.

  • Partially assembled PCBs.

  • Double-sided boards awaiting second-side reflow.

  • PCB materials requiring moisture protection during handling and storage.

3. Semiconductor and Precision Material Storage

Additional storage applications include:

  • Semiconductor wafers.

  • CCDs and optical components.

  • Quartz and fiber optics.

  • Oscillators and condensers.

  • PCB pattern films and prepregs.

  • Soldering-related materials.

  • Die-cast and molding compounds.

  • Bonding materials.

  • Fluorescent powders.

  • Other hygroscopic materials and precision components.

Storage requirements should be evaluated according to each material's characteristics and manufacturer recommendations.

Key Features of Eureka Dry Tech Fast Super Dryer

1. Stable Ultra-Low Humidity Control

Multiple humidity-control options are available:

  • XDC Series: Below 5% RH.

  • SDC Series: Below 10% RH.

  • TD Series: Below 20% RH.

  • TUS Series: Adjustable from 10% to 50% RH.

2. Fast Humidity Recovery

Designed to restore low-humidity conditions efficiently after cabinet door openings under specified test conditions.

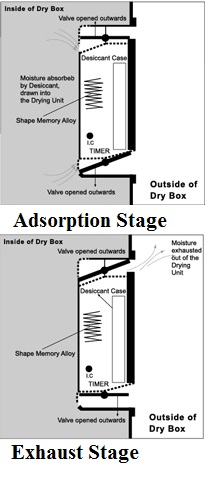

3. Automatic Desiccant Regeneration

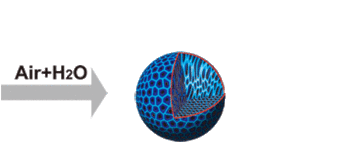

The dehumidification system uses a regenerating desiccant mechanism to adsorb moisture and expel it outside the cabinet automatically.

4. Dual RH Sensor Design

Independent humidity sensing functions in the dehumidification system and hygrometer provide separate humidity monitoring.

5. Electrostatic Discharge (ESD) Protection

Fast Super Dryer cabinets are designed with ESD-protective features, including:

  • Anti-static cabinet coating.

  • Anti-static glass.

  • ESD-protective shelving and supporting components.

  • Grounding cable with 1MΩ resistance.

These features support electrostatic discharge protection for sensitive electronic components.

6. Room-Temperature Dehumidification

Unlike heated drying ovens, Fast Super Dryer cabinets maintain low-humidity conditions without requiring high-temperature storage.

This helps reduce the risk of heat-related material degradation during extended storage.

7. No Continuous Nitrogen or Dry Air Supply Required

Automatic electronic dehumidification provides controlled storage conditions without the ongoing gas consumption associated with conventional purging systems.

8. Wide Range of Industrial Applications

Suitable for SMT manufacturing, PCB production, semiconductor processing, electronics assembly, laboratories, cleanrooms, and precision material storage.

Why Choose Eureka Dry Tech Fast Super Dryer?

As electronics become smaller, more complex, and increasingly sensitive to moisture, reliable humidity control has become essential for modern manufacturing.

Eureka Dry Tech's Fast Super Dryer provides an effective solution for protecting moisture-sensitive devices, printed circuit boards, and precision materials during storage and production.

By combining ultra-low humidity control, fast recovery performance, automatic desiccant regeneration, and ESD-protective features, Eureka Dry Tech helps manufacturers improve material handling, reduce moisture-related risks, and support consistent manufacturing quality.
